GridRabbit Dimmer

Wireless lighting control for guestrooms and shared spaces, with remote brightness adjustment, schedules, energy monitoring, and multi-location dimming in the GridRabbit platform.

QuickFit enclosure
SimpleWire terminals
0-100% dimming
Energy monitoring
Multi-location control

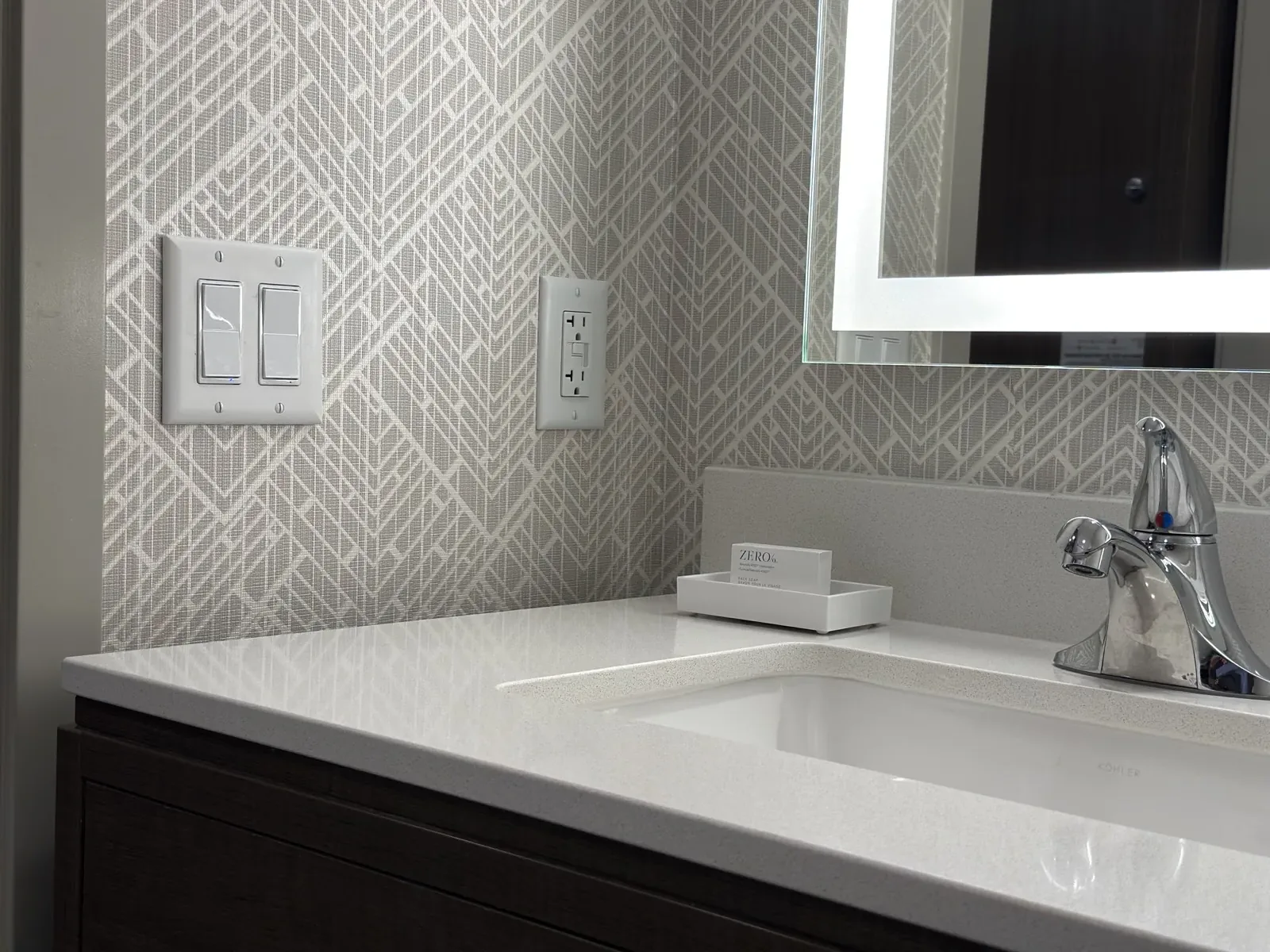

GridRabbit-compatible lighting controls installed in a bathroom

Built for retrofit boxes and multi-gang installs

The dimmer material highlights QuickFit and SimpleWire installation features that make the control easier to fit and faster to wire. The reduced housing depth helps in older boxes and tighter multi-gang layouts, while the auto-detecting line/load terminals cut down on install guesswork.

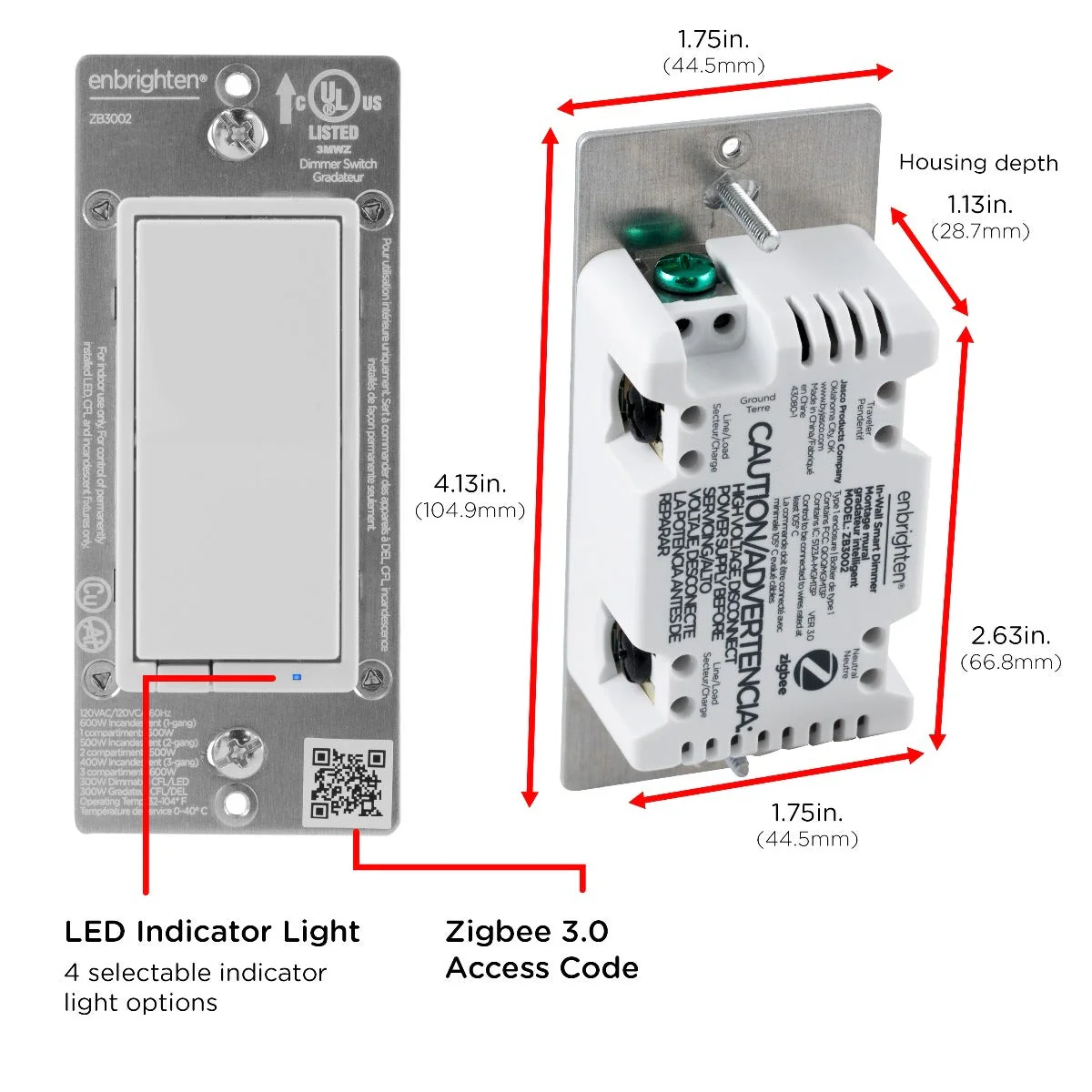

Housing depth reduced by up to 20% compared with earlier ZigBee designs.
No break-off tabs and dual offset ground ports help with cleaner multi-switch installation.

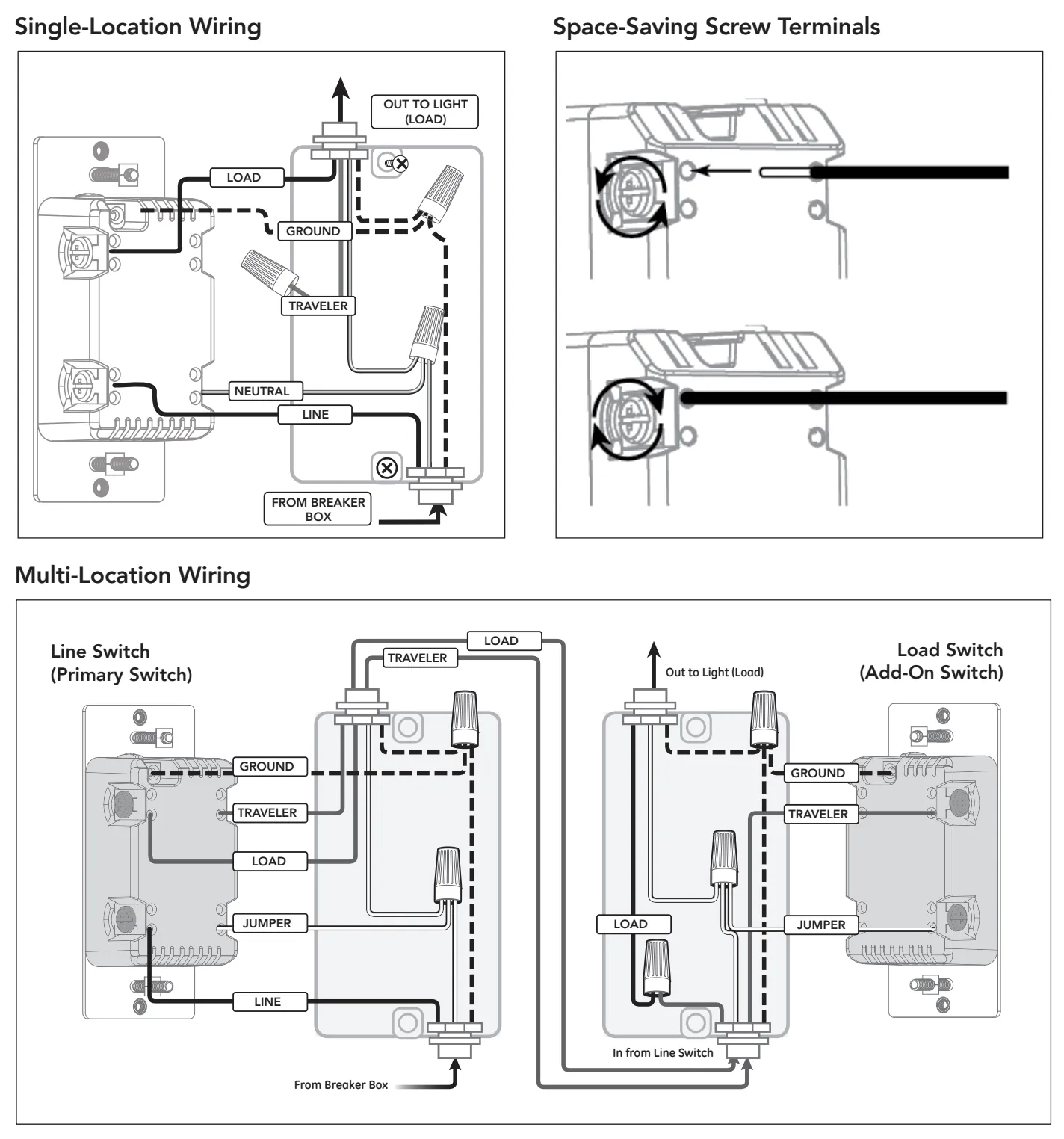

Auto-detecting line and load terminals configure the dimmer around the actual wiring.

Room lighting that stays visible in software

Use the dimmer to remotely turn lights on or off, adjust brightness, and apply schedules from the same GridRabbit views used for room devices and floor operations. With compatible hub support, the dimmer can also feed energy readings into broader room and building workflows.

Full-range dimming for dimmable LEDs, CFLs, incandescent, and halogen fixtures.
Works on its own or with add-on switches for up to five control locations.
Repeats the ZigBee mesh signal to extend wireless coverage by up to 150 feet.

Where dimmers fit best

Use GridRabbit dimmers where room ambiance, quiet-hours scheduling, and energy-aware lighting control matter. Guest rooms, bathrooms, corridors, amenity spaces, and residential-style suites all benefit from dimming that can be managed locally or remotely from the same operations model.
