Heat/Cool, 3-speed fan control and can be configured for DnD/MuR as well.

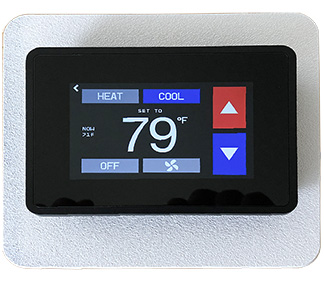

The thermostat and DnD/MuR has a 4” color IPS capacitive touch screen, long range ZigBee/bluetooth as well as WiFi connectivity. The unit can be remotely configured as either a Thermostat, In Room or Outside the Room DnD/MuR Touch Screen solution with optional Door Bell function, as all units come with a built in speaker. Also supports additional services like requesting: Tray Removal, New Towels, Bell Cart, Dry Cleaning etc. Can be ordered in custom wall plate enclosures with braille. Fully Integrated with Lennox VRF.
The thermostat can connect to any 3 Heat/2 Cool conventional or heat pump HVAC system. The thermostat’s Zigbee technology enables it to send and receive signals allowing remote monitoring and control of temperature set points. It can also receive price signals and messages from a utility company or grid operator. The easy-to-use interface makes it simple to control energy consumption.
Specifications
| Temperature unit | Degree C/Degrees F |
| Operating temperature | 32-113 degrees F (0-45 degrees C) |
| Indoor temperature measurement range | 40-99 degrees F (5-37 degrees C) |
| RF frequency | 2.40-2.48 GHz |
| RF range | Up to 1,300 ft (400 m) line of sight |
| A/C/ power | 18-30 V AC at R and C terminals |
| Screen Size | 4" IPS |
